Extra Digital / ED-POE804PRO

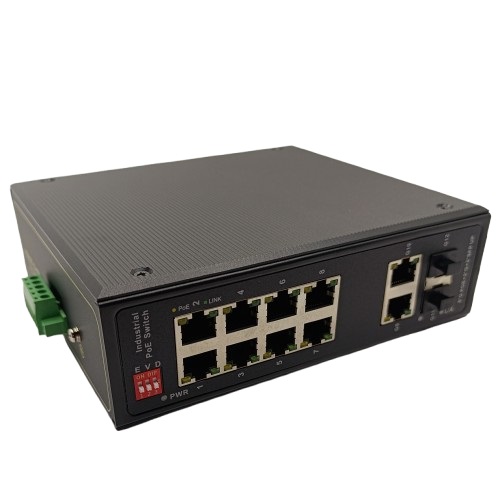

PoE switch 8x Gigabit PoE+2x Gigabit UPLINK, SFP, 120W Industrial

Unmanaged Industrial PoE Switch 10 Ports 1000M with 2 SFP Ports 1000M. Features: 8x 10/100/1000M PoE ports, 2x 10/100/1000M RJ45uplink ports, 2x 1000M SFP ports Industrial PoE Switch, port 1-8 support IEEE 802.3af/at. PoE ports support AF/AT intelligent recognition. Standard power is 15.4W/port, Maximum power: 30W/port. Only support 1,2(+)/3,6(-). Input voltage: DC12-40V, Redundant dual power 5-bit industrial terminals; Output Voltage: 48V. IP protection level: IP40; Rail-type installation. Specification: Interface: 8x10/100/1000Base-TX PoE ports (Data/Power), 2x 1000M RJ45 ports (Data), 2x 1000Base-X uplink SFP fiber slot ports (Data); 2 set of V+, V- redundant DC power interface (5Pin Phoenix terminal). Network Protocol: IEEE802.3 10BASE-T. IEEE802.3i 10Base-T. IEEE802.3u 100Base-TX. IEEE802.3ab 1000Base-T. IEEE802.3z 1000Base-X. IEEE802.3x. PoE Standard: IEEE802.3af/at. Ethernet Port Feature: Port 1-8 support 10/100/1000Base-TX, Port 9-10 support 10/100/1000Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption. SFP Port: Gigabit SFP optical fiber interface, default matching optical modules, need to buy separately, (optional order mode / multi-mode, single fiber / double fiber optical module). MAC: 8K. Buffer Memory: 4M. Twisted Pair Transmission: 10BASE-T: Cat3,4,5 UTP ( Warranty: 24 months.

175,69 €

Pieejamība: 5
