HiSmart / ED-EL240487

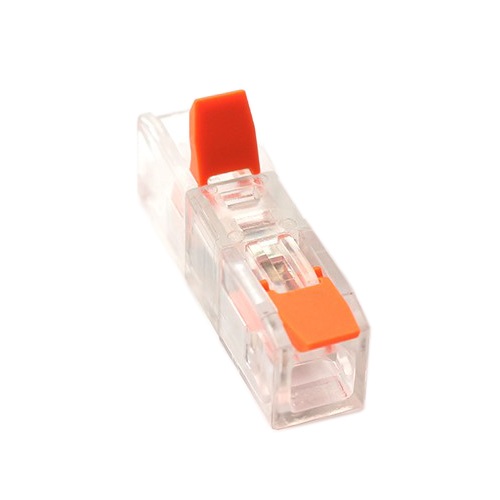

Splicing Connector, Inline with Lever, 1-1, 0.2–4.0mm², 32A, 450V, 100pcs

Name: Splicing Connector, Inline with Lever, 1-1, 0.2–4.0mm², 32A, 450V, 100pcs
Brand: HiSmart
SKU: ED-EL240487
Price: 19.24 EUR
Availability: InStock

Splicing connector, inline with lever, 1-1, 0.2–4.0mm², 32A, 450V, 100pcs Features: Splicing wire connector designed for fast and secure connections of all conductor types: solid, fine-stranded, single strand or multi strand conductors. Compact design saves space in junction boxes. Transparent housing allows for easy visual inspection of the connection. Technical specifications: Number of connection points: 2. Rated voltage: 450V. Rated current: 32A. Rated surge voltage (II/2): 4kV. Conductor cross-sectional area: 0.2–4.0mm². Insulating material: Polycarbonate (PC). Operating temperature: 25~+85°C. Dimensions: 33x10.5x8.5mm. Weight: 288g (100pcs). orange. Set includes: 100 pcs. Warranty: 24 months.

19,24 €

Pieejamība: 5
