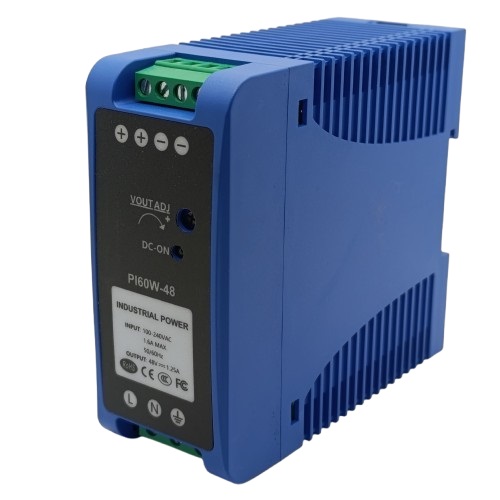

HiSmart / ED-DR-60-48

Power supply 48V, 1.25A, 60W, DIN

Power supply 48V, 1.25A, 60W, DIN. Features: Economical slim 60W DIN Rail industrial power supply. Can be installed on DIN rails: TS-35/7.5 or TS-35/15. Cooling by free air convection. Operation at the ambient temperature between -40°C to 70°C. Protections: short circuit / overload / over voltage. High efficiency, durability, reliability, narrow profile. Meets the EU standards EMC for harmonic current emissions EN61000-3-2. Specifications: Input range AC: 90-264V. Frequency 47-63Hz. Output voltage DC: 48V. DC voltage adjustable range: 47 ~ 56V. Rated current: 1.25A. Rated power: 60W. AC current: 1.4A / 115V, 0.8A / 230V. Ripple and noise: 100mV p-p. Efficiency: 89%. Leakage current: Warranty: 24 months.

32,21 €

Pieejamība: 5
