HiSmart / ED-DR-150-24

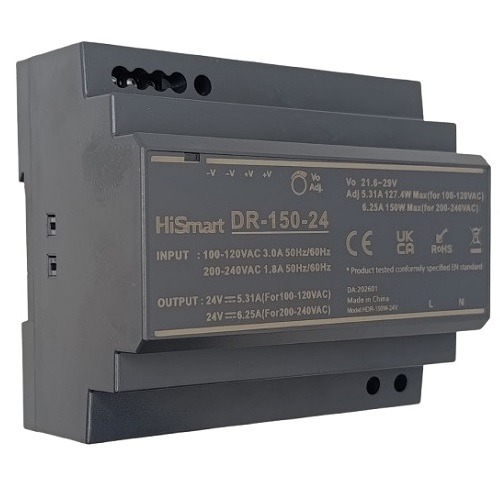

Power supply 24V, 6.25A, 150W, DIN

Power supply 24V, 6.25A, 150W, DIN. Features: Compact switching power supply designed for mounting on a standard 35 mm DIN rail. Protection: overload, overvoltage, and short-circuit protection. Cooling by free air convection. No load consumption: Specifications: Type: switching power supply. Input range AC: 100-240V. Frequency: 50/60Hz. Output voltage DC: 24V. Rated current: 6.25A. Max. power: 150W. AC current: approx. 3A/115V, approx 1.8A/230V. Ripple and noise: 240mvp-p. Efficiency: 89%. Working temperature: -30°C~+60°C. Housing material: plastic. Insulation: Class II. Dimensions: 105x90x55 mm. Weight: 340 g. Warranty: 24 months.

29,28 €

Pieejamība: 5
